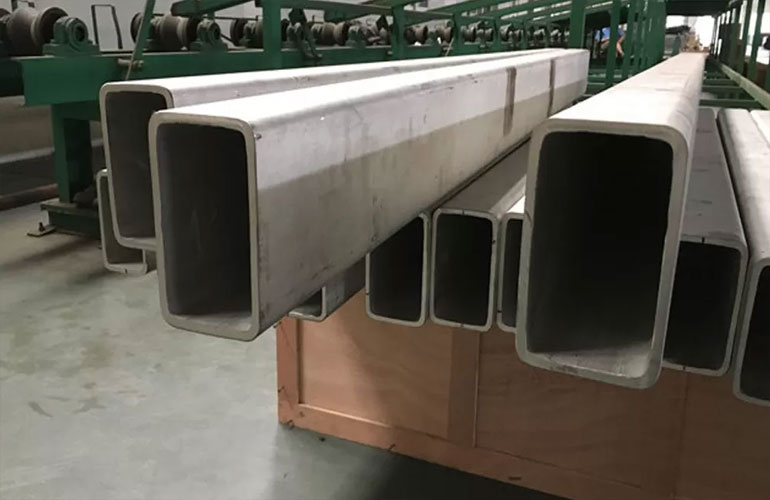

Hollow Sections

Specification

Standard : Hollow Sections
SHS (Square Hollow Sections) Sizes : 20*20mm-400*400mm
Wall Thickness : 0.5mm - 25mm
Length : 6000-14000 mm
Type : Seamless/ Welded / ERW
Dimensional Tolerances : Thickness : (All sizes +/- 10%)
Packing : In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark
Available Grades : S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355J2+N, IS 4923 / ASTM A500 / As Per Requirement
Surface Protection: Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized

Size chart

Size mm kg/m Size mm kg/m
20 x 20 x 2.0 1.12 20 x 20 x 2.5 1.35
25 x 25 x 1.5 1.06 25 x 25 x 2.0 1.43
25 X 25 X 2.5 1.74 25 X 25 X 3.0 2.04
30 X 30 X 2.0 1.68 30 X 30 X 2.5 2.14
30 X 30 X 3.0 2.51 40 x 40 x 1.5 1.81
40 x 40 x 2.0 2.31 40 x 40 x 2.5 2.92
40 x 40 x 3.0 3.45 40 x 40 x 4.0 4.46
40 x 40 x 5.0 5.40 50 x 50 x 1.5 2.28
50 x 50 x 2.0 2.93 50 x 50 x 2.5 3.71
50 x 50 x 3.0 4.39 50 x 50 x 4.0 5.72
50 x 50 x 5.0 6.97 60 x 60 x 3.0 5.34
60 x 60 x 4.0 6.97 60 x 60 x 5.0 8.54
60 x 60 x 6.0 9.45 70 x 70 x 3.0 6.28
70 x 70 x 3.6 7.46 70 x 70 x 5.0 10.11
70 x 70 x 6.3 12.50 70 x 70 x 8 15.30
75 x 75 x 3.0 7.07 80 x 80 x 3.0 7.22
80 x 80 x 3.6 8.59 80 x 80 x 5.0 11.70
80 x 80 x 6.0 13.90 90 x 90 x 3.0 8.01
90 x 90 x 3.6 9.72 90 x 90 x 5.0 13.30
90 x 90 x 6.0 15.76 90 x 90 x 8.0 20.40
100 x 100 x 3.0 8.96 100 x 100 x 4.0 12.00
100 x 100 x 5.0 14.80 100 x 100 x 5.0 14.80
100 x 100 x 6.0 16.19 100 x 100 x 8.0 22.90
100 x 100 x 10 27.90 120 x 120 x 5 18.00
120 x 120 x 6.0 21.30 120 X 120 X 6.3 22.30
120 x 120 x 8.0 27.90 120 x 120 x 10 34.20
120 X 120 X 12 35.8 120 X 120 X 12.5 41.60
140 X 140 X 5.0 21.10 140 X 140 X 6.3 26.30
140 X 140 X 8 32.90 140 X 140 X 10 40.40
140 X 140 X 12.5 49.50 150 X 150 X 5.0 22.70
150 X 150 X 6.3 28.30 150 X 150 X 8.0 35.40
150 X 150 X 10 43.60 150 X 150 X 12.5 53.40
150 X 150 X 16 66.40 150 X 150 X 16 66.40
180 X 180 X 5 27.40 180 X 180 X 6.3 34.20
180 X 180 X 8 43.00 180 X 180 X 10 53.00
180 X 180 X 12.5 65.20 180 X 180 X 16 81.40
200 X 200 X 5 30.50 200 X 200 X 6 35.8
200 x 200 x 6.3 38.2 200 x 200 x 8 48.00
200 x 200 x 10 59.30 200 x 200 x 12.5 73.00
200 x 200 x 16 91.50 250 x 250 x 6.3 48.10
250 x 250 x 8 60.50 250 x 250 x 10 75.00
250 x 250 x 12.5 92.60 250 x 250 x 16 117.00
300 x 300 x 6.3 57.90 300 x 300 x 8 73.10
300 x 300 x 10 57.90 300 x 300 x 8 90.70
300 x 300 x 12.5 112.00 300 x 300 x 16 142.00
350 x 350 x 8 85.70 350 x 350 x 10 106.00
350 x 350 x 12.5 132.00 350 x 350 x 16 167.00
400 x 400 x 10 122.00 400 x 400 x 12 141.00
400 x 400 x 12.5mm 152.00 400 x 400 x 16 192
